When the image is clicked, the expansion image is displayed.

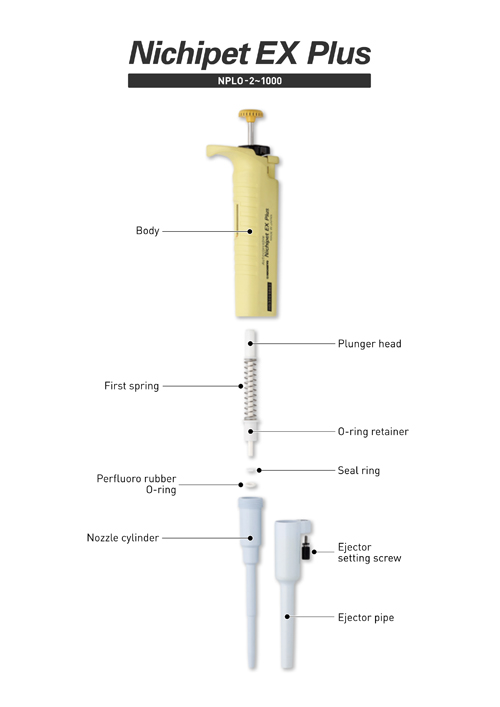

NPLO-2～1000

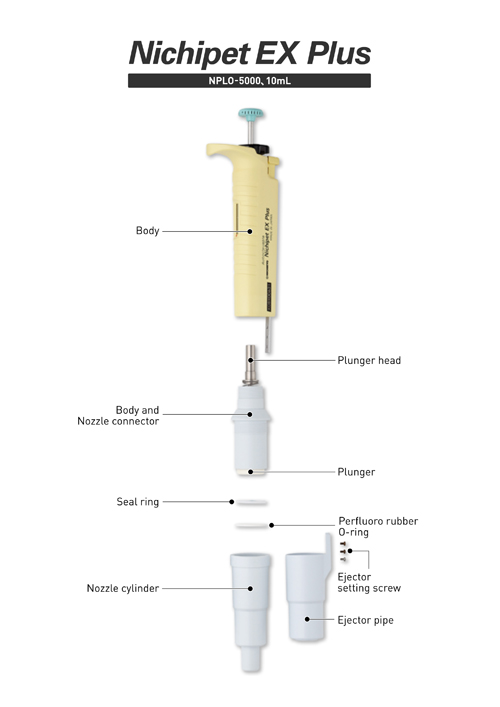

NPLO-5000、10mL
| Model | Cat. No | Parts | Q'ty | Remarks |
| NPLO-2 | NX-010002 | Plunger head | 1 | Plunger & plunger head |
| NX-020002 | First spring | 1 | − | |
| NX-040002 | Nozzle cylinder | 1 | Nozzle cylinder & K bush | |
| NX-030002 | Seal & O-ring set for organic solvent | 1 | − | |
| NX-300002 | O-ring retainer | 1 | − | |
| NX-090010 | Ejector pipe | 1 | − | |
| NX-081000 | Ejector setting screw | 1 | Screw, spring & washer | |
| NPLO-10 | NX-010010 | Plunger head | 1 | Plunger & plunger head |
| NX-020010 | First spring | 1 | − | |
| NX-040010 | Nozzle cylinder | 1 | Nozzle cylinder & K bush | |
| NX-030010 | Seal & O-ring set for organic solvent | 1 | − | |
| NX-300010 | O-ring retainer | 1 | − | |
| NX-090010 | Ejector pipe | 1 | − | |
| NX-081000 | Ejector setting screw | 1 | Screw, spring & washer | |
| NPLO-20 | NX-010020 | Plunger head | 1 | Plunger & plunger head |
| NX-020020 | First spring | 1 | − | |
| NX-040020 | Nozzle cylinder | 1 | Nozzle cylinder & K bush | |
| NX-030020 | Seal & O-ring set for organic solvent | 1 | O-ring+Seal ring+O-ring retainer | |
| NX-300020 | O-ring retainer | 1 | − | |
| NX-090200 | Ejector pipe | 1 | − | |
| NX-081000 | Ejector setting screw | 1 | Screw, spring & washer | |
| NPLO-100 | NX-010100 | Plunger head | 1 | Plunger & Plunger head |
| NX-020100 | First spring | 1 | − | |
| NX-040100 | Nozzle cylinder | 1 | − | |
| NX-030100 | Seal & O-ring set for organic solvent | 1 | − | |
| NX-300100 | O-ring retainer | 1 | − | |
| NX-090200 | Ejector pipe | 1 | − | |
| NX-081000 | Ejector setting screw | 1 | Screw, spring & washer | |
| NPLO-200 | NX-010200 | Plunger head | 1 | Plunger & Plunger head |
| NX-020200 | First spring | 1 | − | |
| NX-040200 | Nozzle cylinder | 1 | − | |
| NX-030200 | Seal & O-ring set for organic solvent | 1 | − | |
| NX-300200 | O-ring retainer | 1 | − | |
| NX-090200 | Ejector pipe | 1 | − | |
| NX-081000 | Ejector setting screw | 1 | Screw, spring & washer | |
| NPLO-1000 | NX-011000 | Plunger head | 1 | Plunger & plunger head |
| NX-021000 | First spring | 1 | − | |
| NX-041000 | Nozzle cylinder | 1 | − | |
| NX-031000 | O-ring & seal ring set | 1 | − | |
| NX-301000 | O-ring retainer | 1 | − | |
| NX-091000 | Ejector pipe | 1 | − | |
| NX-081000 | Ejector setting screw | 1 | Screw, spring & washer | |
| NX-061000 | Nozzle filter | 10 | − | |
| NX-110000 | Nozzle filter remover | 1 | − | |
| NPLO-5000 | NX-015000 | Plunger head | 1 | Plunger & plunger head |
| NX-015000G | 1 | |||
| NX-025000 | First spring | 1 | − | |
| NX-045000 | Nozzle cylinder | 1 | − | |
| NX-045000X | 1 | − | ||
| NX-0271 | Nozzle O-ring | 1 | − | |
| NX-035000 | O-ring & seal ring set | 1 | − | |
| NX-03500G | 1 | − | ||
| NX-095000 | Ejector pipe | 1 | − | |
| NX-09500X | 1 | − | ||
| 5GB-085 | Ejector setting screw | 3 | M2xL3 | |
| NX-065000 | Nozzle filter | 100 | − | |
| NX-065000X | 100 | − | ||
| NX-150000 | Nozzle filter remover | 1 | − | |
| NPLO-10ML | NX-0110ML | Plunger head | 1 | Plunger & plunger head |
| NX-0210ML | First spring | 1 | − | |
| NX-0410ML | Nozzle cylinder | 1 | − | |
| NX-0410MLG | 1 | − | ||
| NX-0310ML | O-ring & seal ring set | 1 | − | |
| NX-0910ML | Ejector pipe | 1 | − | |
| NX-0910MLG | 1 | − | ||
| NX-0910MLX | 1 | − | ||
| 5GB-086 | Ejector setting screw | 4 | Sx3/Lx1 | |
| NX-0610ML | Nozzle filter | 100 | − | |
| NX-150000 | Nozzle filter remover | 1 | − | |
| All Models | 5GB-053 | Adjustment tool | 1 | − |
